Showing all 8 results
-
The Trimos A6 arm features a 7-axis configuration, offering maximum flexibility for measurement and reverse engineering tasks. The additional degree of freedom allows seamless integration of a scanner for point cloud inspection or reverse engineering applications. Building on the strengths of the A5, the Trimos A6 arm includes key features such as a magnetic brake to protect both the arm and the user from accidental movement or damage. With lengths starting at 1800 mm and…
-

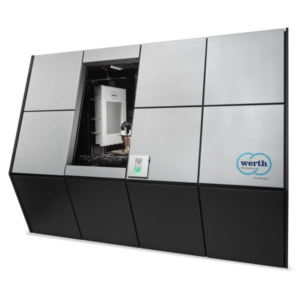

The TomoScope® L is designed for 3D measurement of very large and dense parts, such as those made from aluminum, steel, titanium, composites, ceramics, or glass fiber-reinforced plastic. It features a modular design, which means it can be customized and expanded to meet different needs. Along with complete CT (computed tomography) scanning, it can also perform high-precision measurements of specific features using additional sensors — all in one setup and one coordinate system. Made In
-

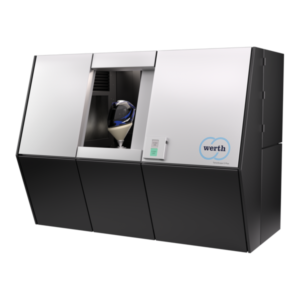

The Werth TomoScope® S offers the highest accuracy in its class, while keeping a compact design. It comes in three versions with different measuring volumes to suit various needs. Thanks to its large measuring range and high tube voltage, it can measure even large parts effectively. The X-ray tubes with transmission targets have a very small focal spot, even at high power. This allows for fast and highly detailed measurements, even on difficult materials. It’s…
-

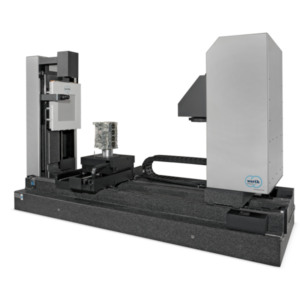

The Werth TomoScope® XL NC is a powerful and precise machine designed for 3D measurement and inspection of both large and small parts. Thanks to its high tube voltage of 450 kV, it can handle large, dense components like engine blocks and cylinder heads, as well as ceramic workpieces. To expand its use, the system can be equipped with a second X-ray tube that switches automatically. This makes it ideal for measuring small parts with…
-

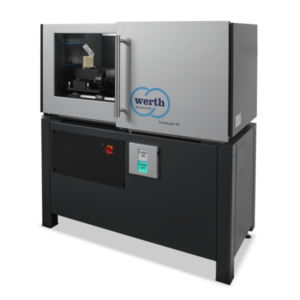

The TomoScope® XS is an entry-level industrial CT (computed tomography) device designed for precise measurement of small parts. It is suitable for both shopfloor and inspection room environments, using X-ray tomography within the detector’s field of view. It features a new monoblock design that combines the X-ray tube, voltage generator, and vacuum system into one compact unit. This unique design uses a transmission tube with a small focal spot, even at high power, allowing fast…
-

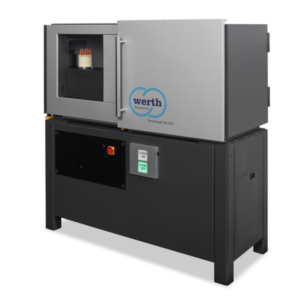

The TomoScope® XS FOV is a compact and user-friendly machine that uses X-ray tomography to measure parts quickly and accurately. It works directly in the detector’s field of view, without needing to move parts around, and can run fully automatically. Multiple small items like plastic lids or dowels can be measured at the same time using special holders. This system is perfect for checking plastic parts made in large numbers, either on the shopfloor or…
-

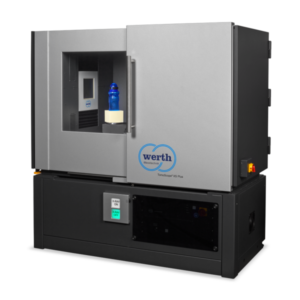

The TomoScope® XS Plus is used for measuring parts using X-ray tomography, both on the shopfloor and in the measuring room. It can measure larger parts or small objects with very high detail, or in less time. It captures the full 3D shape of the object, with adjustable resolution in all directions (up to 60 billion data points). It’s ideal for measuring things like connectors, plastic parts and covers, 3D-printed components, packaging, PET bottles, and…
-
The TomoScope® XS Plus offers a unique combination of compact size and low weight with a large measuring volume. It can measure both larger workpieces and smaller, detailed parts with high resolution or faster scan times—at a price similar to standard multisensor coordinate measuring machines. It delivers complete 3D data with adjustable resolution in all directions, reaching up to 60 billion voxels. With its powerful 200 kV X-ray source, it can easily handle complex components…
