Trimos 3D Arm - A6

Trimos 3D Arm – A6

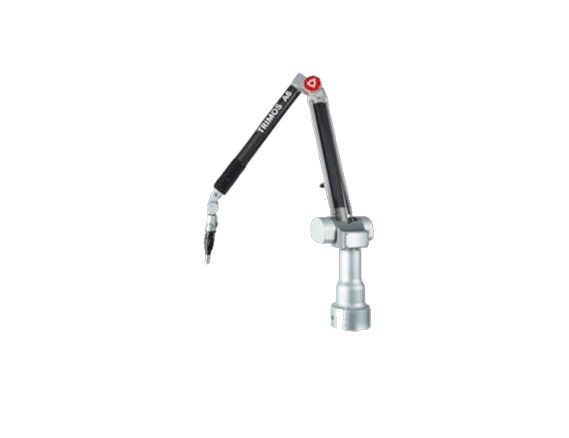

The Trimos A6 arm features a 7-axis configuration, offering maximum flexibility for measurement and reverse engineering tasks. The additional degree of freedom allows seamless integration of a scanner for point cloud inspection or reverse engineering applications.

Building on the strengths of the A5, the Trimos A6 arm includes key features such as a magnetic brake to protect both the arm and the user from accidental movement or damage.

With lengths starting at 1800 mm and extending up to an impressive 9000 mm, the A6 arm supports full compatibility with laser scanners and is easily integrated with most leading 3D software solutions in the market.

Made In
Switzerland Flag
Categories: , , , , , , , , , , , , , , , Brand:

Key Features:

  • 7 axis configuration that exists in ranges from 1800mm to 9000mm
  • Ergonamic pistol hand
  • Can be used in combination with laser scanners for point cloud inspection or reverse engineering
  • Probe and scan simultaneously
  • Magnetic break to prevent accidental fall of the arm
  • Improved electronics for better performance
  • Additional degree of freedom in movement provides greatest flexibility
  • Integrated bluetooth system and USB connectivity

Technical Specifications:

Model A6 Measuring range (m) Axes Vol. accuracy (mm) Weight (kg)
A6 – 1800 1.8 7 0.031 8.9
A6 – 2500 2.5 7 0.040 9.4
A6 – 3200 3.2 7 0.052 9.8
A6 – 4000 4.0 7 0.069 10.5
A6 – 5000 5.0 7 0.075 13.5
A6 – 7000 7.0 7 0.090 15
A6 – 9000 9.0 7 0.170 17.5
Model A6 + ScanSurf Measuring range (m) Axes Vol. accuracy (mm) Weight (kg) Accuracy [mm] with scan ScanSurf 25 Accuracy [mm] with scan ScanSurf 50 Accuracy [mm] with scan ScanSurf 10
A6 – 1800 1.8 7 0.031 8.9 0.037 0.066 0.104
A6 – 2500 2.5 7 0.040 9.4 0.043 0.069 0.106
A6 – 3200 3.2 7 0.052 9.8 0.052 0.075 0.110
A6 – 4000 4.0 7 0.069 10.5 0.062 0.082 0.115
A6 – 5000 5.0 7 0.075 13.5 0.079 0.096 0.125
A6 – 7000 7.0 7 0.090 15 0.094 0.108 0.135
A6 – 9000 9.0 7 0.170 17.5 0.180 0.180 0.197
A6 Arm
Operational Temperature +5 ÷ +40 °C
Relative humidity 90% without condensation
Marks of conformity CE
Power requirement 110 – 220 V / 50 – 60 Hz
Ingress protection IP 54
Connectivity Bluetooth & USB
Autonomy on batteries > 8 h
Technology

Tactile Measurements 3D, Laser Scanning
Industry

Automotive & Auto Ancillary, Aerospace, Defense, Government & R&D, Pharma & Med-Tech, Heavy, Power generation
Application

R&D, reverse engineering

Reviews

There are no reviews yet.

Be the first to review “Trimos 3D Arm – A6”

Your email address will not be published. Required fields are marked *
