Adaptive Precision

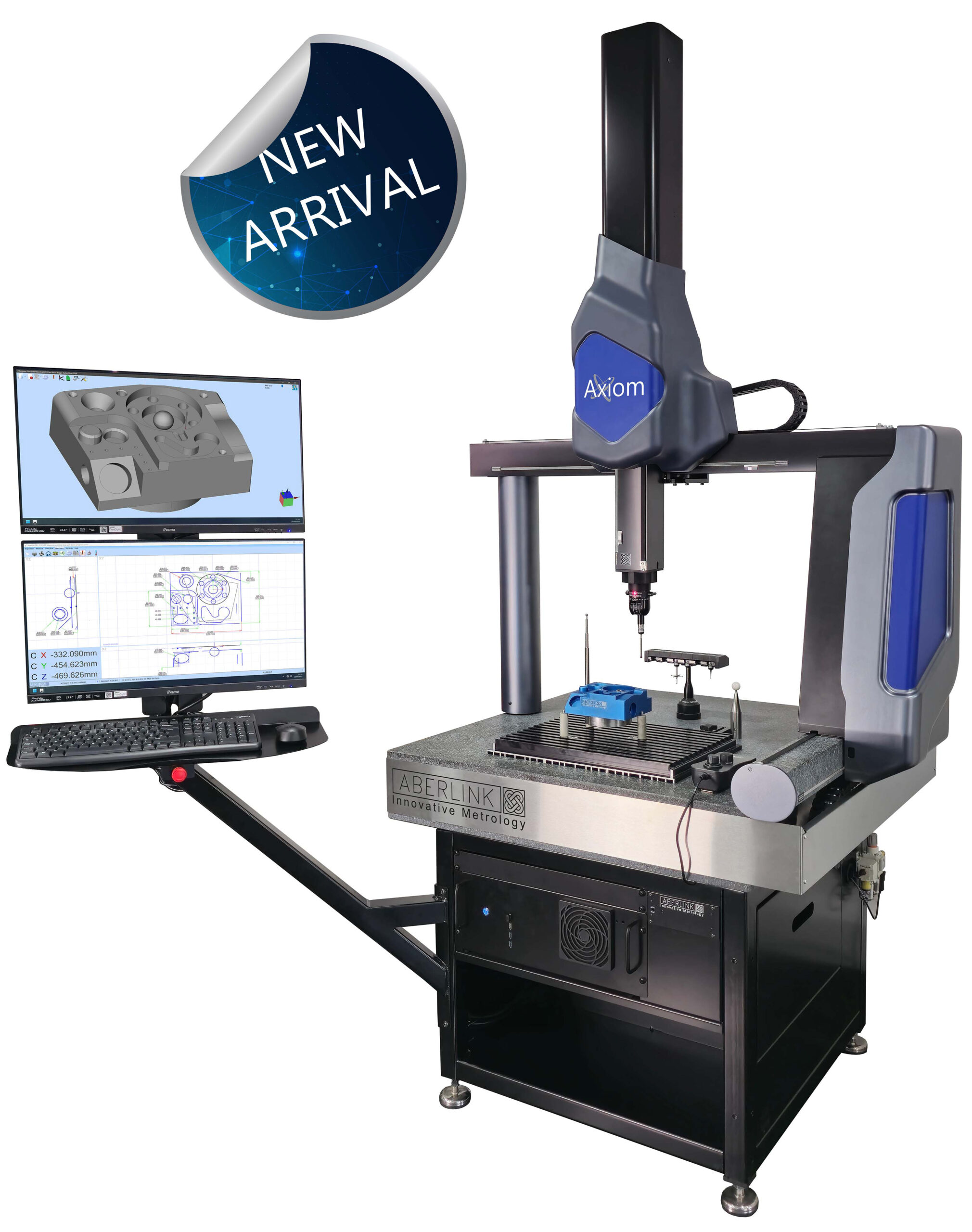

The all aluminium beam structure not only ensures that the Axiom has low inertia resulting in high acceleration to get the job done quickly, but also that the temperature of the beam rapidly follows the temperature of the room, ideal when the CMM is not housed in a controlled environment. Temperature compensation in the software reports results as if they had been measured at 20°C/68°F
Reliable Accuracy
The standard high-tech granite and aluminium table, originally developed for the optics industry, provides fantastic natural damping of high frequency vibration and the granite Y rail allows pre-loading of the bridge air bearings in both directions for superior accuracy.
Key Features:
- Smallest overall footprint of any comparable size CMM
- Choice of Y axis sizes ranging from 600mm to 1200mm
- Suitable for the workshop environment
- Protection from environmental vibrations as standard – our honeycomb granite structure offers excellent isolation from high-frequency vibrations as compared to solid granite
- Optimized friction free air bearings, all aluminum bridge and granite table
Specification:-
| Axis Travel (mm) | X 640 Y 600, 900, 1200 Z 500 |
| Overall Size (mm) | X 1040 Y 900, 1200, 1500 Z 2320 |
| Motion | CNC |
| Structure | Bridge |
| Suitable for | Inspection Room / Shop Floor |
| Drive Type | Belt |
| *Volumetric Accuracy | TP20 (2.1 + L/250)µm TP200 (2.0 + L/250)µm SP25M (1.8 + L/250)µm |
| Scale Resolution | 0.1µm |
| **Optimum Temp Range | 18 – 22°C |
| Operational Temp Range | 5 – 45°C |
| Table Construction | Honeycomb aluminium & granite or solid granite |
| Table Load Capacity | 300kg (Honeycomb) or 500kg (Solid) |
| Max. Velocity Vector | 850mm/sec |
| Max. Acceleration Vector | 850mm/sec² |
| Air Required | Yes |
| Air Consumption | 100 l/min (3.53 cfm) |
| Required Air Pressure | 7 bar (100 psi) |
| Aberlink Camera Support | Yes |
