Trimos-V4+

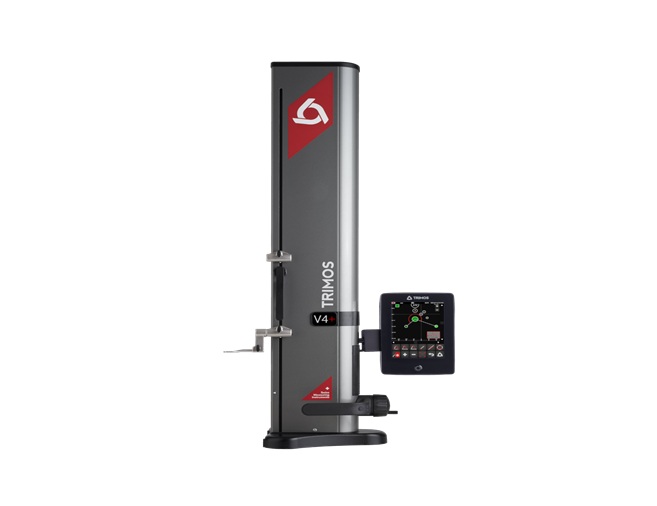

Trimos Height Gauge – V4+

The V4+ height gauge takes the trusted mechanical design of the V4 and combines it with modern features and an advanced interface, offering high precision and smooth performance. It’s a smart and affordable alternative to traditional 2D height gauges, providing excellent accuracy and a user-friendly experience.

Made with Swiss-quality engineering, the V4+ is built to be strong and stable. It includes an air cushion system that allows it to move easily across the measuring table. It can handle important tasks like measuring distances, diameters, and centre points, making it suitable for both simple and complex measurements.

The V4+ is designed to support long and heavy probes (up to 400 mm) with excellent repeatability. Its screen gives real-time visual feedback during the measurement process, helping users see results clearly and accurately. The touch screen is easy to navigate, with simple menus and controls that reduce training time.

It also includes a built-in 2D display that shows part measurements instantly, and customizable programs that help simplify complex tasks and reduce the chance of errors. For data sharing, the V4+ offers USB, RS232, and wireless options, making it easy to connect and export data to other systems.

Overall, the V4+ offers high-level accuracy, ease of use, and flexibility—all in a cost-effective and efficient package, making it a great choice for professionals who want advanced features without complexity.

Made In
Switzerland Flag
Categories: , , , , , , , , , , , , , , , Brand:

Key Features:

  • Robust Mechanical Design
  • Dynamic graphical feedback
  • Smart touch navigation
  • Integrated 2-coordinate measurement
  • Integrated measurement programs
  • Comprehensive data connectivity

Technical Specifications:

V4+ 400 700
Measuring range mm (in) 407 (16) 711 (28)
Application range mm (in) 719 (28) 1023 (40)
Max permissible errors, BMPE µm 2.5 + L(mm)/250 2.5 + L(mm)/250
Repeatability, RMPE (2s) µm 2 (Ø: 3)
Frontal squareness deviation SMPE µm 9 13
Max. Resolutions mm 0.001 (0.00005)
Measuring force N 0.75 ÷ 1.5
Autonomy h 20
Interfaces USB / RS232 / Wireless
Air cushion Yes
Weight kg 21 24

The above values were determined in accordance with ISO 13225 using the TA-MI-101 insert.
RMPE is defined as 2 times the standard deviation (2s) over a series of 20 height measurements.

Technology

Tactile Measurements 1D/2D
Industry

Automotive & Auto Ancillary, Aerospace, Defense, Government & R&D, Pharma & Med-Tech, Heavy, Power generation, Electronic & Communication, Tooling
