Trimos Height Gauge - V3

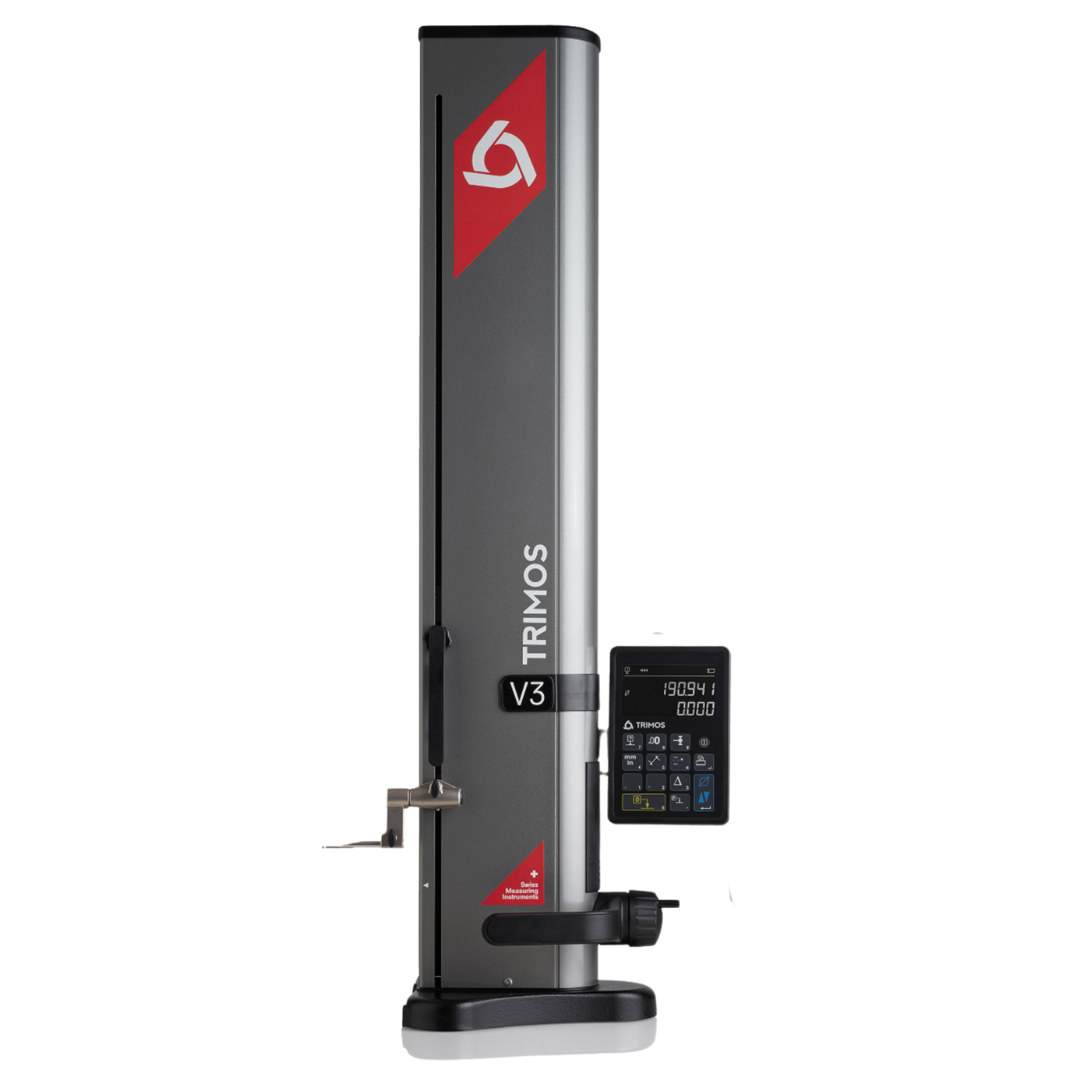

Trimos Height Gauge – V3

The V3 height gauge is specially made to work well even in tough workshop conditions. Fully made in Switzerland, it is strong, accurate, and built to last for many years.

For over 40 years, Trimos has focused on creating measuring tools that are simple to use and highly effective in production settings.

The display is clear and easy to understand, with symbols for each function that anyone can follow. This makes it simple to use, even for people without special training. The large two-line “Black Mask” screen gives excellent contrast, making it easy to read in any lighting—something rare in other devices.

The V3 includes many advanced features. It’s a strong, user-friendly tool with all the important functions needed for workshop use.

Made In
Switzerland Flag
Categories: , , , , , , , , , , , , , Brand:

Key Features:

  • Measuring ranges 400 and 700 mm
  • Extremely easy to use
  • Electronically adjustable measuring force
  • Probes available to measure up to 400mm in length
  • Vast range of accessories
  • All adjustments possible without tools
  • “Industry 4.0” compatible with RS232 and USB interfaces for data transfer

Technical Specifications:

V3 400 700
Measuring range mm (in) 407 (16) 711 (28)
Application range mm (in) 508 (20) 812 (32)
Max permissible errors, BMPE um 7 7
Repeatability, RMPE (2s) um 2 (Ø: 4) 2 (Ø: 4)
Frontal squareness deviation SMPE um 10 15
Max. Resolutions mm 0.001 (0.00005)
Measuring force N 0.75 ÷ 1.5 0.75 ÷ 1.5
Autonomy h 40 40
Interfaces USB / RS232 USB / RS232
Air cushion No No
Weight kg 21 24

Note: The above values have been determined according to ISO 13225 with the standard measuring insert (TA-MI-101).

Technology

Tactile Measurements 1D/2D
Industry

Automotive & Auto Ancillary, Aerospace, Defense, Government & R&D, Pharma & Med-Tech, Heavy, Power generation, Electronic & Communication, Tooling
