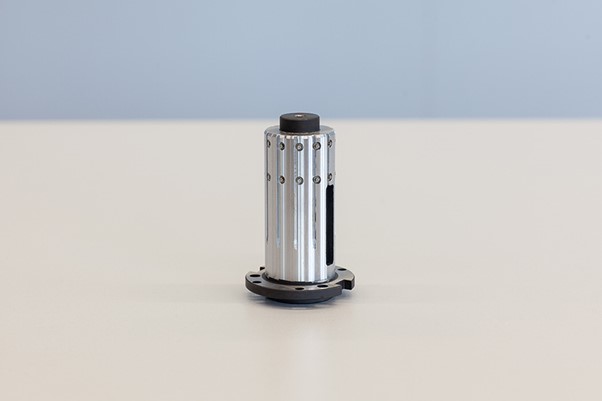

Stotz precision air gauging tools are designed to deliver the highest quality measurements with exceptional accuracy. With a diameter range from 0.6 mm to 250 mm, these tools accommodate various measurement needs, including special ranges. The mandrel length starts from 5 mm and can be customized based on customer requirements. The air jets come in different types, such as round air jets, spring contact, and slotted air jets.
The air jet arrangement options include opposite (180°) and 90°/120° pitch upon request. Our multi-level design supports multiple gauging levels with special customization available. Measuring ranges span from 10 μm to 180 μm, with repeat accuracy as precise as 0.05 µm. Essential accessories such as handles, quick-change systems, protective boxes, and extensions ensure seamless operation and durability.
Features:
- Diameter range: 0.6 mm to 250 mm (customizable)
- Mandrel length: From 5 mm (customized as per needs)
- Air jet types: Round air jets, spring contact, slotted air jets
- Air jet arrangement: 180° opposite, 90°/120° pitch available
- Measuring range: 10 μm to 180 μm (other ranges available)
- Repeat accuracy: As precise as 0.05 µm
- Accessories: Handle, quick-change system, protective box, extensions
