Features:
- Non-contact measurement
- Small footprint design
- Measuring range: 400 µm
- Resolution: 0.1 nanometer (nanometric resolution)
- Extremely easy to use with intuitive camera controls and adjustable brightness
- Exchangeable optics, or mounted on a carousel
- Height / delta / min / max measurements
- Quick movements for fast operation
- Easy-to-use software with pre-programmed measurement templates
- High accuracy in measurements
- Capable of measuring on moving parts
- Exceptional measurement speed
- State-of-the-art software
- Compatible with 2D and 3D standards
Technical Specifications:

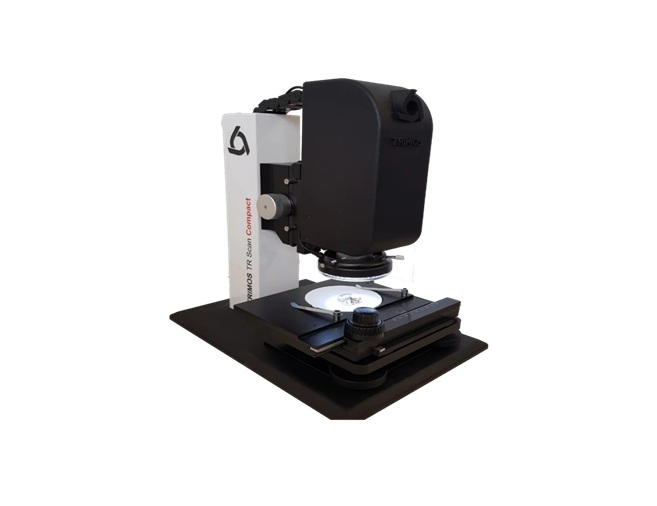

TR Scan Compact WLI
| WLI 2.5x | WLI 5x | WLI 10x | WLI 20x | WLI 50x | WLI 100x | |
|---|---|---|---|---|---|---|
| Resolution | 0.1 nm | 0.1 nm | 0.1 nm | 0.1 nm | 0.1 nm | 0.1 nm |
| Lateral resolution (X/Y) | 4.81 µm | 4.81 µm | 1.2 µm | 0.9 µm | 0.66 µm | 0.52 µm |
| Measuring range | 400 µm | 400 µm | 400 µm | 400 µm | 400 µm | 400 µm |
| Measuring range X/Y | ~4536 µm x ~3447 µm |
~2268 µm x ~1723 µm |
~1134 µm x ~861 µm |
~567 µm x ~430 µm |
~226 µm x ~172 µm |
~113 µm x ~86 µm |
| Optical Zoom | 2.5x | 5x | 10x | 20x | 50x | 50x |
| Working distance | ~10.3 mm | ~9.3 mm | ~7.4 mm | ~4.7 mm | ~3.4 mm | ~3.4 mm |
TR Scan Compact Z
| TR Scan Compact Z | ||
|---|---|---|
| Optical sensor | Working distance | 31.8 mm |
| Measuring range | 8 mm | |
| Resolution | 0.1 µm | |
| Numerical aperture | 0,25 | |
| Maximum angle of measurement | 90° +/- 15° | |
| Spot size | 15 µm | |
| MEP | 0.6 µm | |
| X/Y measuring system | Type of system | Incremental |
| Resolution | 1 µm | |
| MEP | ~ 10 µm | |
| Interface connection | 2x USB 2.0 | |
| Vision | Video stream | Live image |
| Field of view | 7 x 5.25 mm | |
| Resolution | 1600 x 1200 | |
| Pixel size | ~4.3 µm | |
| Sensor type | colour CMOS | |
| Other | Interface connection | 2x USB 2.0 |

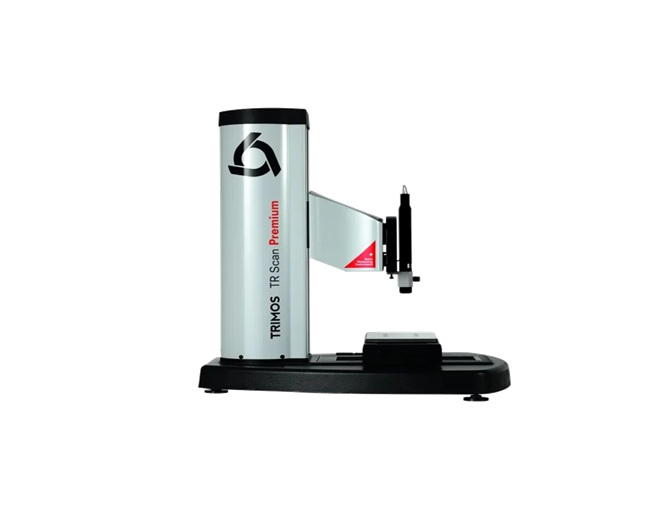

TR Scan Premium Pack 3D
| Specifications | CCM-L1 0.2mm | CCM-L1 1mm | CCM-L1 4mm |
|---|---|---|---|
| Vertical measurement range | 200 µm | 0.95 mm | 3.9 mm |
| Line width | 0.96 mm ± 0.01 mm | 1.91 mm ± 0.01 mm | 4.78 mm ± 0.02 mm |
| Lateral spacing | 5 µm | 10 µm | 25 µm |
| Working distance | 5.3 mm ± 0.2 mm | 18.5 mm ± 0.2 mm | 41 mm ± 0.2 mm |
| Spot size | 2 µm | 4 µm | 10 µm |
| Lateral resolution | 1 µm | 2 µm | 5 µm |
| Accuracy | ± 80 nm | ± 300 nm | ± 1.2 µm |
| Digital opening | 0.7 | 0.55 | 0.33 |
| Maximum measurement angle | 90°+/-44° | 90°+/-33° | 90°+/-20° |
| Thickness measurement range | 20 μm – 280 μm | 75 μm – 1.35 mm | 300 μm – 5.5 mm |
| Minimum Ra measurement 1) | < 0.1 µm | < 0.8 µm | NA |
