Trimos Height Gauge - V1+

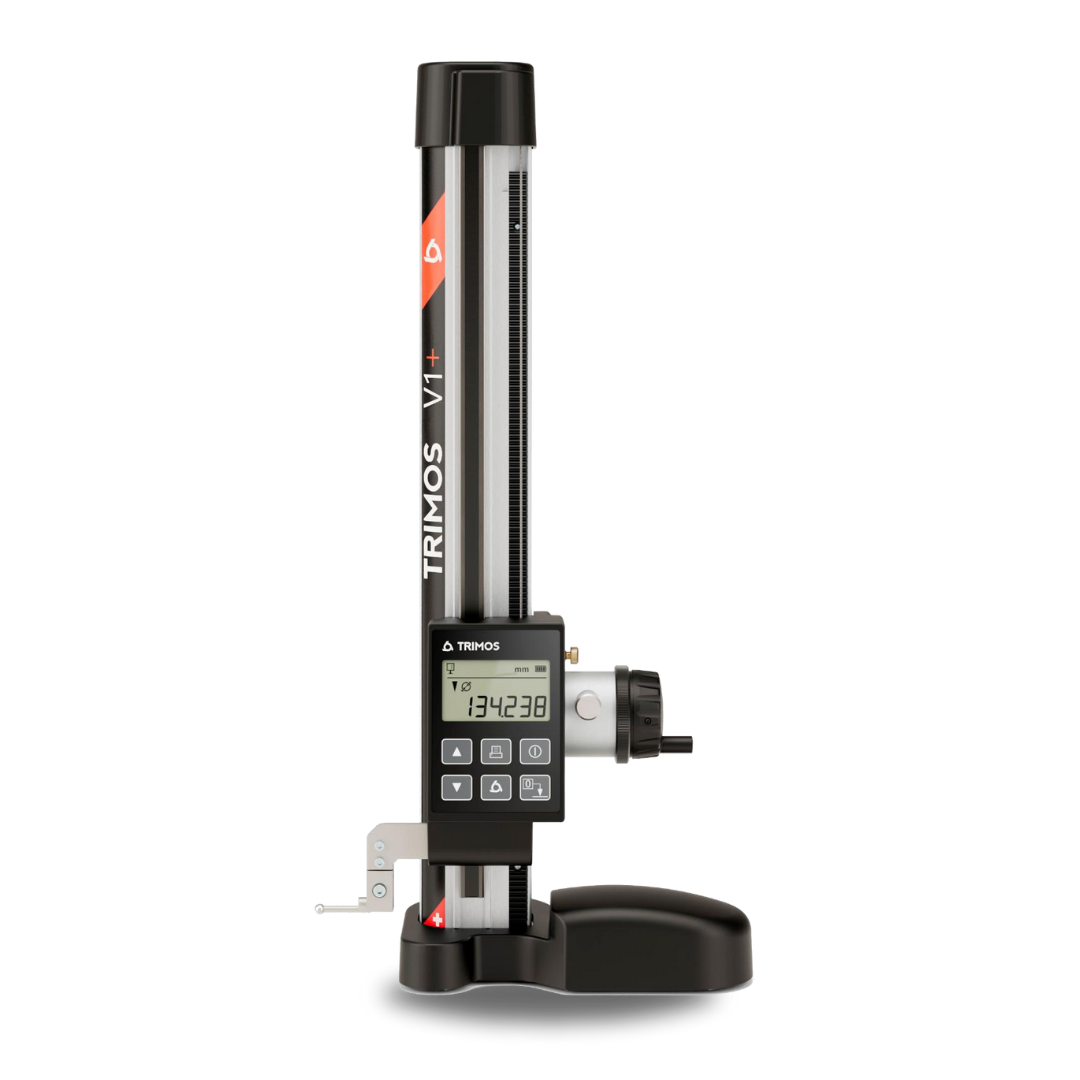

Trimos Height Gauge – V1+

The V1+ builds on the trusted features of the V1 and offers even more, making it ideal for users who want to expand their measuring options. Unlike the V1, this model supports bidirectional measurement, meaning it can measure in both directions, this adds more flexibility and saves time, as you don’t need any extra tools or accessories.

The V1+ is also great for measuring diameters, whether it’s inside (internal) or outside (external) dimensions. This makes it useful for a wide range of parts and components.

It also includes fine adjustment controls, allowing users to make very precise movements during measurement. Along with this, it has a constant measuring force, which means the same pressure is applied every time you measure and this helps improve both accuracy and repeatability of your results.

Overall, the V1+ is a powerful, easy-to-use instrument for those who need more advanced features without giving up simplicity.

Made In
Switzerland Flag
Categories: , , , , , , , , , , , , , Brand:

Features:

  • Precision Scribing: Tailored for precision scribing applications in tough environments
  • Bidirectional measurements: Advanced capabilities including diameters and centerline measurements without extra tools (V1+)
  • Operating comfort: A counterweight system provides unparalleled operational efficiency and comfort
  • Robust Design: Engineered for durability, reliability, and easy transportability
  • Immediate Use Readiness: Very simple and intuitive operation. Clear and large display
  • Enhanced Accuracy: Includes measuring force management for consistent precision (V1+)

Technical Specifications:

V1+ 300 600
Measuring range mm (in) 306 (12) 611 (24)
Max permissible errors, BMPE mm 0.015 0.025
Repeatability, RMPE (2s) mm 0.005 (Ø: 0.01)
Max. Resolutions mm (in) 0.001 (0.0001)
Measuring force N 3
Autonomy h 2000
Interfaces RS232
Max. travel speed mm/s 1500
Weight (steel base) kg 7 8
Weight (granite base) kg 13.4 15

The above values were determined in accordance with ISO 13225 using the TA-MI-121 insert.
RMPE is defined as 2 times the standard deviation (2s) over a series of 20 height measurements.

Technology

Tactile Measurements 1D/2D
Industry

Automotive & Auto Ancillary, Aerospace, Defense, Government & R&D, Pharma & Med-Tech, Heavy, Power generation, Electronic & Communication, Tooling
