Trimos Height Gauge - V1

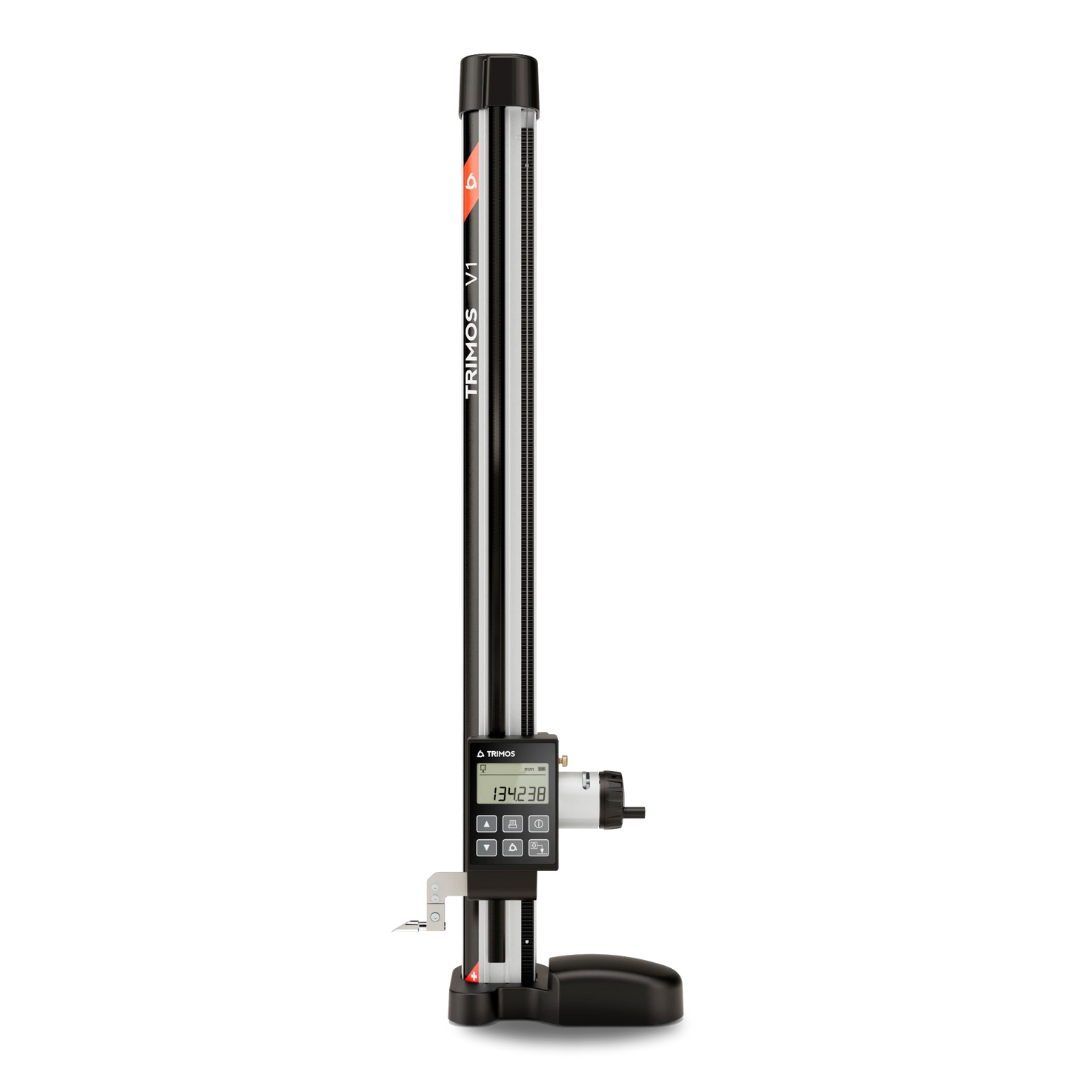

Trimos Height Gauge – V1

Evoset Tool Boy

The V1 is a great choice for anyone new to precision measurement. It makes single-direction (unidirectional) measuring and marking very easy and straightforward.

If you are used to using manual scribers, the V1 is the perfect upgrade. It gives you better accuracy and performance while still being simple and strong. It helps you move from manual tools to more advanced measuring without any confusion.

Built with Swiss-quality engineering, the V1 is designed to last long and deliver reliable results. Its strong build, user-friendly features and ready-to-use design make it perfect for immediate use in workshops or quality labs.

Made In
Switzerland Flag
Categories: , , , , , , , , , , , , , , Brand:

Features:

  • Precision Scribing: Tailored for precision scribing applications in tough environments
  • Operating comfort: A counterweight system provides unparalleled operational efficiency and comfort
  • Robust Design: Engineered for durability, reliability, and easy transportability
  • Immediate Use Readiness: Very simple and intuitive operation. Clear and large display

Technical Specifications:

V1 300 600
Measuring range mm (in) 306 (12) 611 (24)
Max permissible errors, BMPE mm 0.018 0.030
Repeatability, RMPE (2s) mm 0.010
Max. Resolutions mm (in) 0.01 (0.001)
Measuring force N –
Autonomy h 2000
Interfaces RS232
Max. travel speed mm/s 1500
Weight (steel base) kg 7 8

The above values were determined in accordance with ISO 13225 using the TA-MI-121 insert.
RMPE is defined as 2 times the standard deviation (2s) over a series of 20 height measurements.

Technology

Tactile Measurements 1D/2D
Industry

Automotive & Auto Ancillary, Aerospace, Defense, Government & R&D, Pharma & Med-Tech, Heavy, Power generation, Electronic & Communication, Tooling
