Trimos Height Gauge - V2

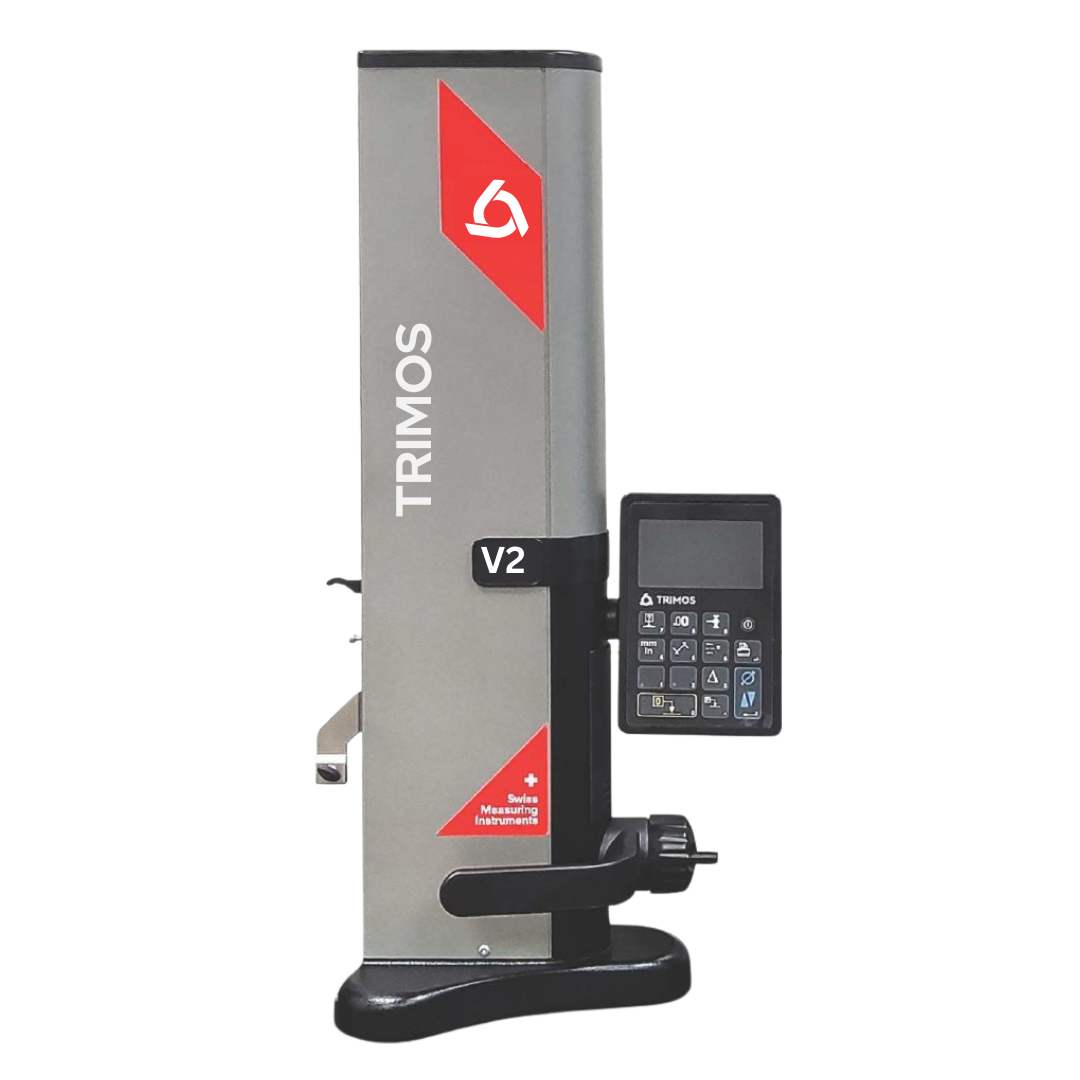

Trimos Height Gauge – V2

Trimos-V4+

The Trimos V2 height gauge is a reliable and easy-to-use measuring tool that reflects Swiss quality and precision. Designed for professionals around the world, it offers accurate measurements with a simple and intuitive interface. Built to handle tough conditions, the V2 is durable and dependable for everyday use. It includes smart features like Smart Reverse for easy diameter measurement. Equipped with USB and RS232 ports, it enables seamless data transfer for improved workflow integration.
The V2 is designed for longevity with minimal maintenance. Available in 400 mm and 700 mm variants, it adapts to diverse measurement needs. More than just an instrument, the V2 is a dependable partner in precision measurement.
Made In
Switzerland Flag
Categories: , , , , , , , , , , , , Brand:

Features:

  • Diverse application feasibility with affordable accessory / probe sets
  • Flexible handling with the proven manual handwheel from Trimos SA
  • Setting Gauge with 25mm Gauge Block
  • User’s Manual Online
  • Availability of RS232 and USB Interfaces for “Industry 4.0” compatibility

Technical Specifications:

V2 400 700
Measuring range mm (in) 406 (16) 710 (28)
Max permissible errors, BMPE µm 6 8
Repeatability, RMPE µm 2 (Ø: 4)
Max. Resolutions mm (in) 0.001 (0.00005)
Measuring force (adjustable electronically) N 0.75 ÷ 1.5
Protection grade of measuring system (CEI 60529) IP67
Interfaces USB / RS232
Air cushion No
Max. manual displacement speed mm/s 1000
Operational temperature °C +10 ÷ +40
Relative humidity (operation and storage) HR 5 ÷ 75 % (without condensation)
Weight kg 21 24

The above values were determined in accordance with ISO 13225 using the TA-MI-101 insert.
RMPE is defined as 2 times the standard deviation (2s) over a series of 20 height measurements.

Technology

Tactile Measurements 1D/2D
Industry

Automotive & Auto Ancillary, Aerospace, Defense, Government & R&D, Pharma & Med-Tech, Heavy, Power generation, Electronic & Communication, Tooling
