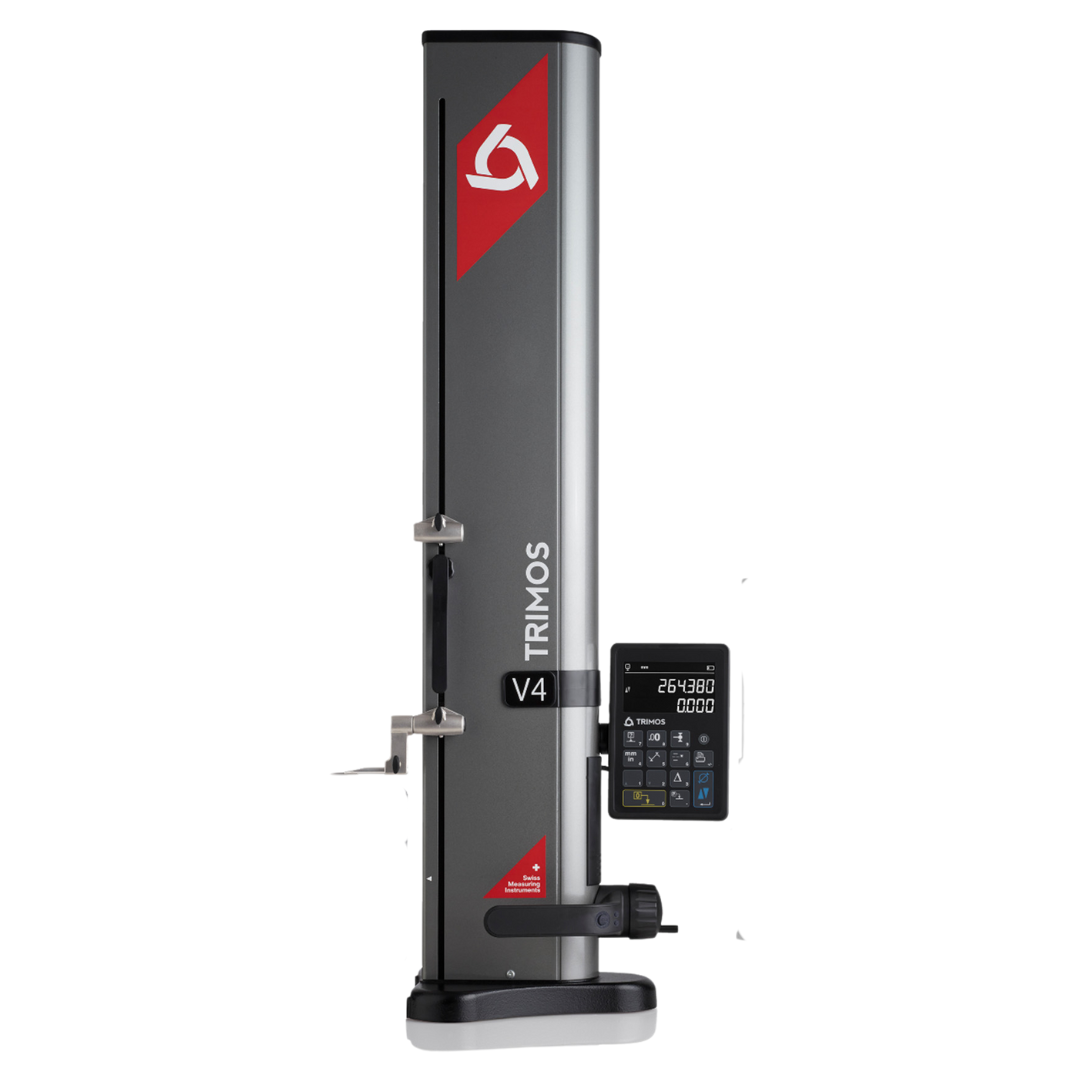

Trimos Height Gauge - V4

Trimos Height Gauge – V4

The Trimos Height Gauge V4 is a reliable, easy-to-use instrument designed for tough workshop conditions. Made entirely in Switzerland, it offers high precision, strength and long-lasting performance. It is perfect for everyday use in demanding environments.

With over 50 years of experience, Trimos focuses on creating tools that are simple to use and efficient for production work. The V4 has a clear, user-friendly display with easy-to-understand symbols. Its large 2-line “Black Mask” screen gives excellent contrast, making it easy to read in any lighting.

Building on the trusted V3 model, the V4 includes extra features like a second probe holder and an air cushion for smooth movement on the measuring table. The handle also has programmable buttons, allowing quick access to common functions, making it simple to use even for those with little training.

A wide variety of accessories are available to match different measuring needs, making the V4 flexible and adaptable. If you’re looking for accuracy, strength, and ease of use, the Trimos V4 is a smart choice.

Made In
Switzerland Flag
Categories: , , , , , , , , , , , , Brand:

Key Features:

  • Measuring ranges 400 and 700 mm
  • Extremely easy to use
  • Electronically adjustable measuring force
  • Probes available to measure up to 400mm in length
  • Vast range of accessories
  • Air pressure for air movement is electronically adjustable without requiring any tools.
  • RS232, USB and Bluetooth data transfer available

Technical Specifications:

V4 400 700
Measuring range mm (in) 407 (16) 711 (28)
Application range mm (in) 719 (28) 1023 (40)
Max permissible errors, BMPE µm 2.5 + L/250 2.5 + L/250
Repeatability, RMPE (2s) µm 2 (Ø: 3)
Frontal squareness deviation SMPE µm 9 13
Max. Resolutions mm 0.001 (0.00005)
Measuring force N 0.75 ÷ 1.5
Autonomy h 20
Interfaces USB / RS232
Air cushion Yes
Weight kg 21 24

Note: The above values have been determined according to ISO 13225 with the standard measuring insert (TA-MI-101).

Technology

Tactile Measurements 1D/2D
Industry

Automotive & Auto Ancillary, Aerospace, Defense, Government & R&D, Pharma & Med-Tech, Heavy, Power generation, Electronic & Communication, Tooling
