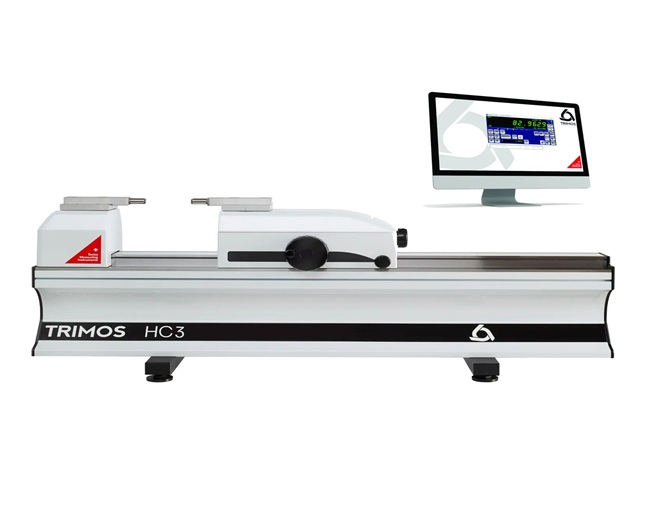

Trimos Calibration Bench – HC3

Trimos-HC4 Trimos Setting Bench HS3

This instrument is used to check both fixed and adjustable measuring tools. It is a top-quality instrument suitable for regular use in workshops or laboratories.

The Horizon Calibration HC3 meets today’s high-accuracy quality control needs in production areas and follows EN ISO 9000 standards.

You can use the HC-Line ULM in workshops or in quality control rooms to check different types of gauges and set various comparative measuring tools. Its modern and reliable design, created with advanced engineering, ensures high precision, easy handling, and better productivity.

This instrument comes with a computer, TFT screen, and Trimos-WinDHI software.

These instruments are available in measuring ranges from 500 mm to 3000 mm. Each one is made from a single solid piece. Since all ranges are direct, the full measuring length scale can be used without making any adjustments or re-calibrations in between.

Made In
Switzerland Flag
Categories: , , , , , , , , , , , , , , Brand:

Features:

  • Quick displacement of the measuring carriage
  • Electronic monitoring and easy adjustment of measuring force
  • Optical and acoustic indication of the measuring position
  • 0.01 μm resolution
  • Windows 10 & 11 compatible
  • Wide range of display options
  • Complies with the requirements of the ISO 9000 standard
  • Provided with proven, robust and easy to use WinDHI software for measuring and temperature compensation
  • LW-QMSoft gauge management and gauge standards software is integrable and can be provided as an option to most laboratories

Technical Specifications:

HC3 500 1000 1500 2000 3000
Measuring range * mm (in) 550 (20) 1050 (40) 1550 (60) 2050 (80) 3050 (120)
Max. permissible errors, BMPE 1) μm 0.6+L(mm)/1200
Repeatability, RMPE (2s) 1) μm 0.1
Maximum resolution mm 0.0001
Fixed measuring force N 0.3 2,3) / 0.5 2,3) / 1 ÷ 12 3)
Max. displacement speed mm/s 4000
Operating temperature °C +10 ÷ +40
Relative humidity % 20 ÷ 80
Weight kg 94 123 152 181 239
Technology

Tactile Measurements 1D/2D
Industry

Automotive & Auto Ancillary, Aerospace, Defense, Government & R&D, Pharma & Med-Tech, Heavy, Power generation, Electronic & Communication, Tooling
