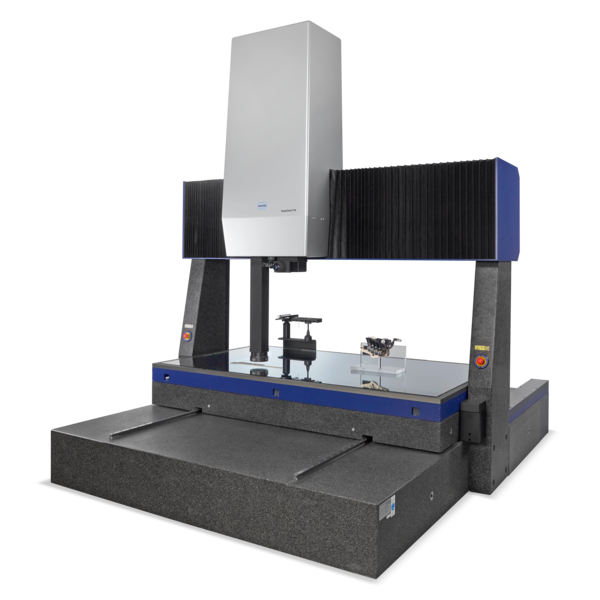

With a modular design, the system supports various sensor configurations, including Werth contour image processing with autofocus. Additional options such as the Werth Multisensor System, rotary axes, and automatic sensor-changing racks enhance versatility. The WinWerth® software simplifies measurement and evaluation through intuitive 3D graphics and CAD support. Complying with ISO 10360/VDI 2617 standards, the machine is suitable for measuring large and complex 3D workpieces, such as engine blocks, dashboards, and pallets with multiple smaller components.
Key Features:
Easy access to the workpiece from all sides:
Inactive sensors don’t limit the measuring area.
Heavy workpieces:
They can be placed and measured directly on the table by removing the glass table and transmitted light unit.
Built for shopfloor use:
Durable mechanical precision guides—no need for air bearings.
High flexibility and accuracy:
In optical measurements with built-in zoom optics.
Safety:
Slim stylus quill allows safe, collision-free measurement of deep or hard-to-reach features.
Upgrdation:
Option to upgrade later with a second and third sensor axis for more measuring capabilities.
