Features:
- Rapid and effortless displacement of the measuring carriage.
- Adjustable measuring force ranging from ~1N to ~12N for flexibility.
- Advanced electronic system for monitoring and adjusting force easily.
- Optical and acoustic alerts ensure precise measuring position identification.
- High-precision measurement with a 0.01 μm resolution.
- Compatible with Windows 10 & 11 for seamless operation.
- Wide range of display options for a customizable experience.
- Fully compliant with ISO 9000 standards.
- Comes with robust and easy-to-use WinDHI software for measurement and temperature compensation.
- Optional LW-QMSoft software available for gauge management and standards, making it ideal for laboratories.

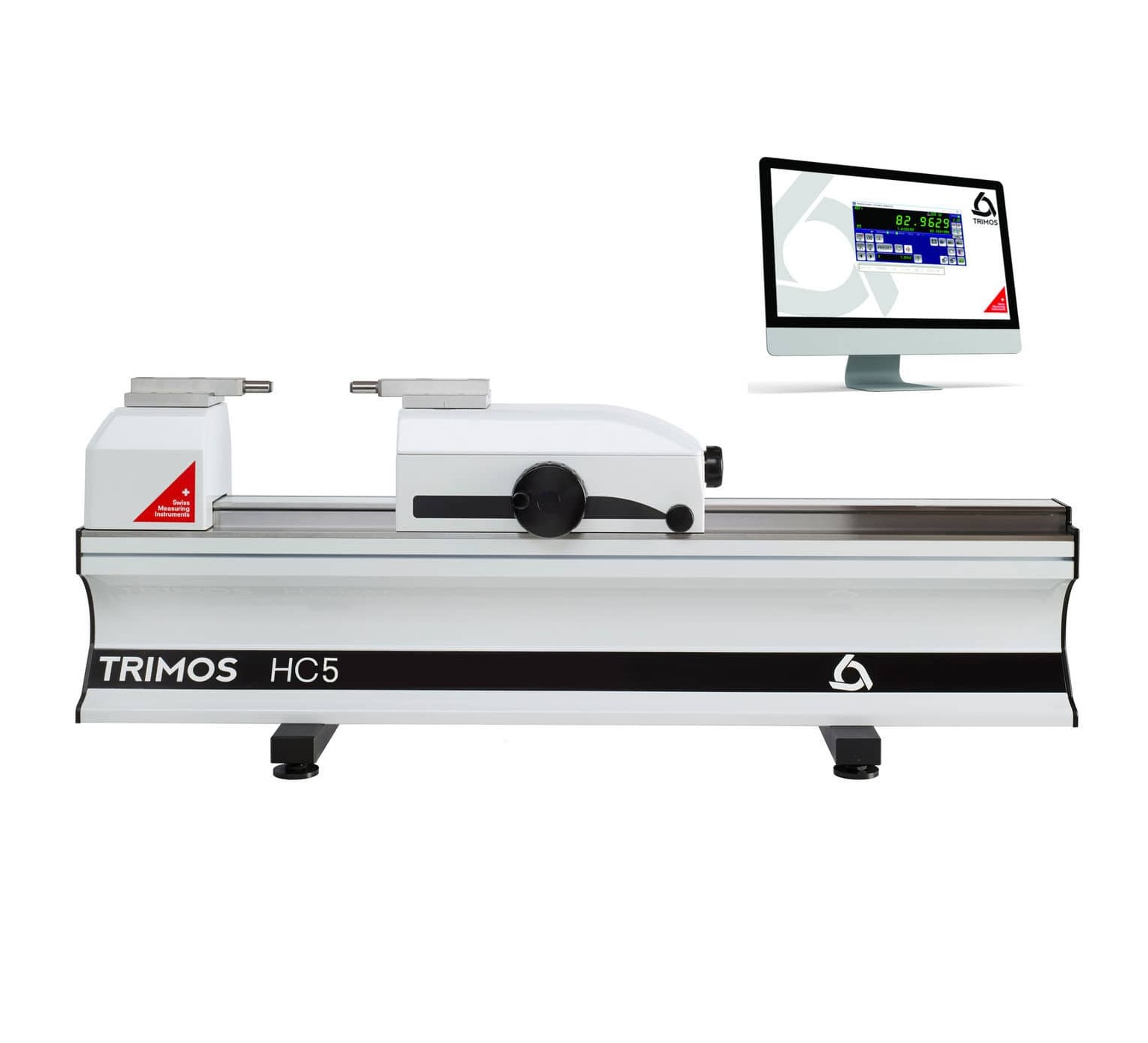

Technical Specifications:
| HC5 | 300 | 500 | 1000 | |
| Measuring range * | mm (in) | 350 (13) | 550 (20) | 1050 (40) |
| Max. permissible errors, BMPE 1) | μm | 0.1+L/2000 | 0.15+L/2000 | 0.15+L/2000 |
| Repeatability, RMPE (2s) 1) | μm | 0.05 | ||
| Maximum resolution | mm | 0.00001 | ||
| Fixed measuring force | N | 0.3 2,3) / 0.5 2,3) / 1 ÷ 12 3) | ||
| Max. displacement speed | mm/s | 4000 | ||
| Operating temperature | °C | +10 ÷ 40 | ||
| Relative humidity | % | 20 ÷ 80 | ||
| Weight | kg | 78 | 94 | 123 |
* The measuring range depends on the anvils used .
1) Values determined at a temperature of 20 ± 0.2 °C and a relative humidity of 50 ± 5 %.
2) With electronic sensor
3) Force display on the WinDHI software window only
