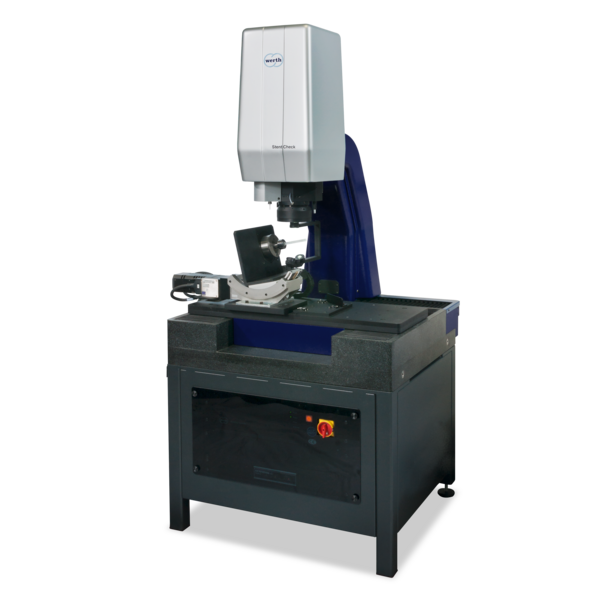

This system provides advanced features such as automatic detection of defective structures and the ability to measure 3D geometries like flare angles. Tactile measurements can be taken at optically determined positions, and the tilt axis is suitable for non-cylindrical geometries. The machine is equipped with Werth contour image processing and can be customized with additional sensors. With WinWerth® software for easy evaluation, it offers traceable 3D specifications and is suitable for non-climatized installations, ensuring reliability in demanding environments, especially in the medical industry.
Key Features:
Fast & Precise Measurements:
Measures hundreds of features like strut widths, angles, and radii with micrometre accuracy in just a few seconds.
Fully Automatic Inspection:
Advanced image processing automatically detects and evaluates defective or faulty structures.
Error-Free Results:
Special software tools prevent false measurements caused by contamination or large deviations from the target geometry.
Tilt Axis for Complex Shapes:
Enables accurate measurement of non-cylindrical shapes, such as conical stents and heart valve stents.
3D Measurement Capability:
Captures full spatial geometry, including critical features like flare angles.
Multi-Sensor Measurement:
Combines optical and tactile methods — tactile sensors can measure at precise locations identified through image processing for added accuracy.
