Trimos TELS

Trimos TELS

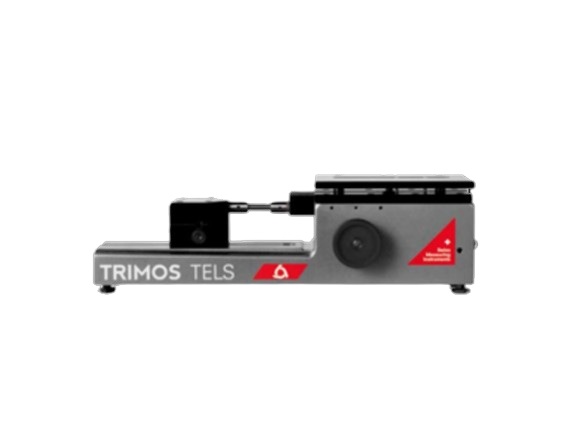

The Mini-Horizontal TELS is a compact and reliable instrument designed for measuring small dimensions, making it ideal for workshops and precision manufacturing. It is widely used for checking internal and external measurements, including ring gauges, plug gauges, and precision parts.
Designed for workshop environments, it supports electronic probes, digital display units, or dial indicators, allowing users to choose a system based on accuracy requirements. It offers an internal measurement range of 10 to 100 mm and an external range of 0 to 100 mm, covering a wide range of applications. With an absolute measuring range of 25 mm, a preset setting ensures precise length measurements.
Made In
Switzerland Flag
Categories: , , , , , , , , , , , , , , ,

Key Features:

  • Ideal for extremely quick and accurate inspection of small ID/OD
  • Extremely user friendly
  • Suitable for use in workshop area
  • Large range of accessories for varied applications

Technical Specifications:

TELS
Absolute measuring range* mm (in) 25 (1)
Application range (external measurements)* mm (in) 100 (4)
Application range (internal measurements)* mm (in) 100 (4)
Max. permissible errors (according to measuring probe)1) µm 1.5
Repeatability (2s)1) µm 0.1
Resolutions mm (in) 0.1 ÷ 0.0001 (.001 ÷ 00001)
Measuring force (adjustable) N 3-8
Operational temperature °C +10 ÷ +40
Temperature of storage °C 10 ÷ +40
Weight kg 15

* The measuring range depends on the anvils used
1) Values determined at a temperature of 20 ± 0.5 °C and a relative humidity of 50 ± 5 %.
