Trimos Portable CMM - C4

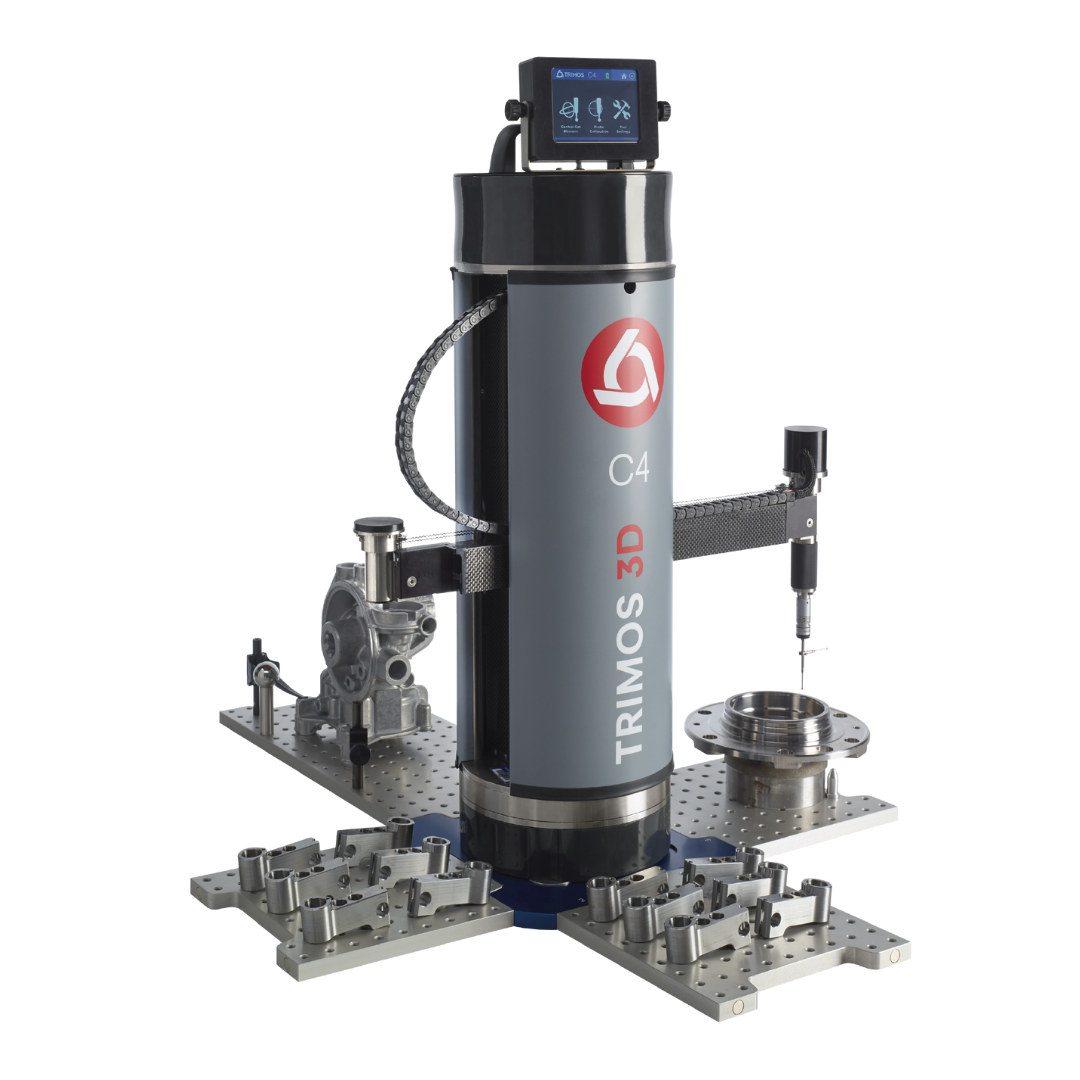

Trimos Portable CMM – C4

The Trimos C-Line is the world’s first truly portable 3D Coordinate Measuring Machine (CMM) engineered specifically for workshop use. It brings high precision and exceptional flexibility directly to the shop floor—right where it’s needed most.

Weighing just 13.5 kg, the C4 model can be easily moved to the production line, effectively eliminating the delays often caused by traditional CMM bottlenecks. Its compact design, combined with high accuracy and efficient operation, makes it ideal for fast, reliable part inspections.

The Trimos C4 is exceptionally user-friendly and intuitive, requiring minimal training. It supports a wide range of measurement capabilities, including distance, circle, plane, line, and point. For advanced functionality, it seamlessly integrates with Aberlink 3D software and remains fully compatible with all leading 3D metrology platforms.

Made In
Switzerland Flag
Categories: , , , , , , , , , , , , , , Brand:

Key Features:

  • Ethernet or wireless communication (WiFi / Bluetooth)
  • Small footprint, ideal for a large volume of work
  • Durable and proven measuring system that uses the Renishaw TP20 measuring system
  • Extreme ease of use and truly powerful for 3D measurements due to connectivity with Aberlink, PolyWorks and Verisurf softwares that are traditionally used with bridge type CMMs.
  • Fully CNC combined with manual operation
  • Offline programming by importing a CAD model
  • Logical 3D compliment to any workshop in the world already using a 1D/2D height gauge

Technical Specifications:

C-Line
Working volume mm X and Y Ø 720, Z 250
MPE E µm 8.0
Machine speed mm/s User controlled to 150
Machine air requirement None required
Machine power requirements 100-240 V AC±10%, 50-60Hz
Autonomy h Normal: 4 /peak: 3
Power consumption W Normal: 10 / Peak 15
Manual motion control User controlled by hand movement of probe
Controller % Onboard PCB provides motion control, error mapping, I++ interface and ControlC metrology software
Probe Type Renishaw TP20 probe
Machine weight kb (lbs) 13.5 (30)
Machine dimensions (W x D x H) mm 420 x 172 x 620
Operational Temperature °C +10 ÷ +40
Storage Temperature °C +10 ÷ +40
Technology

Tactile Measurements 3D, Automatic
Industry

Automotive & Auto Ancillary, Aerospace, Defense, Government & R&D, Pharma & Med-Tech, Electronic & Communication, Tooling
Application

online error correction
