Trimos HS5

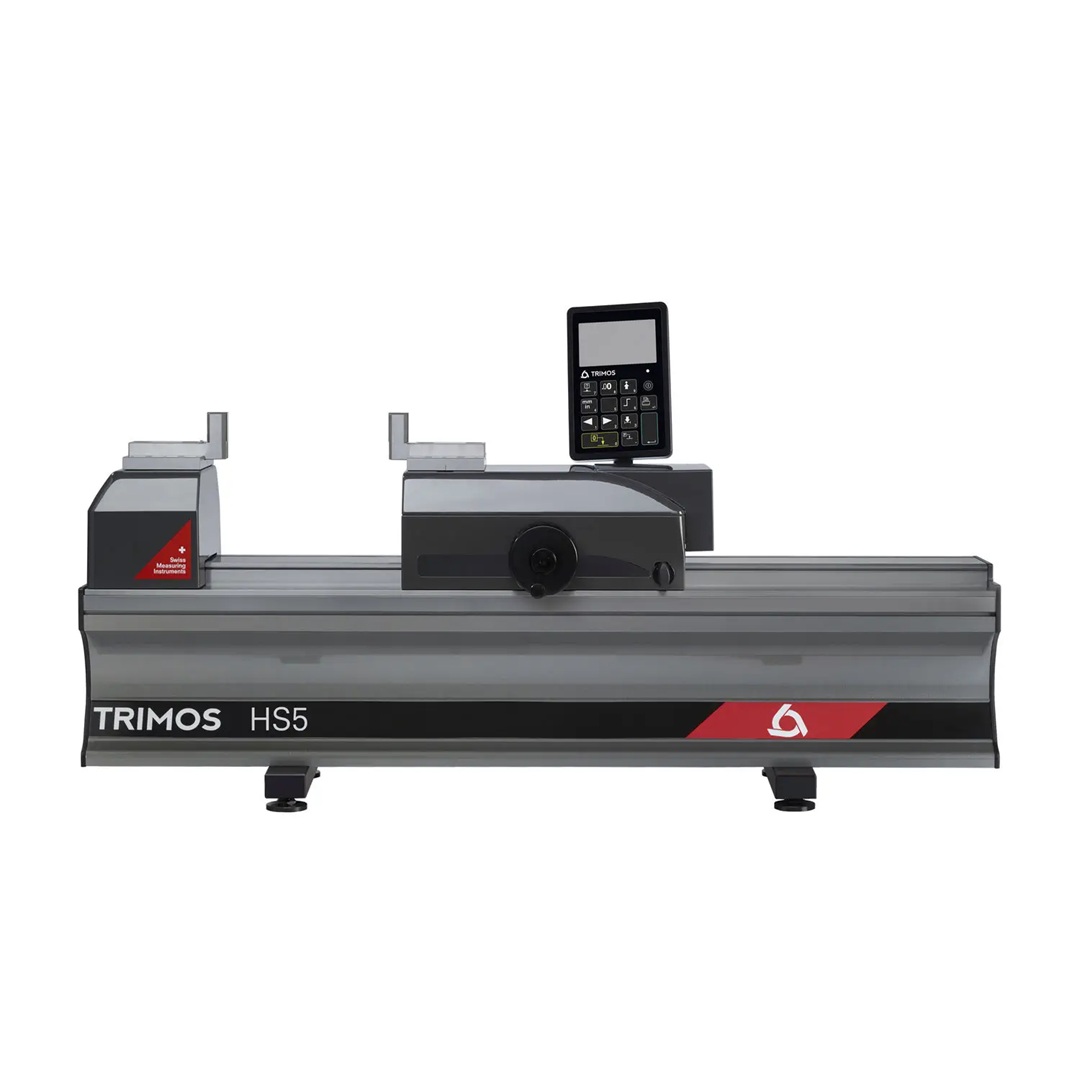

Trimos Setting Bench – HS5

Trimos-HS6

The Horizon Setting HS5 is a high-precision instrument designed for checking and calibrating both fixed and adjustable measuring tools. Its excellent accuracy and fine build quality make it ideal for use in workshops or laboratories. It perfectly meets today’s manufacturing industry requirements.

This latest model builds on the trusted Trimos Horizon Premium, now upgraded with advanced electronics and a new, modern display. Its ergonomic design and simple operation help achieve fast and accurate measurements with ease.

Trimos offers a full range of models from 500 mm to 3000 mm. Each model allows for direct measurement, which means the entire range can be used without the need for resetting or recalibrating during use. A wide choice of easy-to-swap accessories adds flexibility and ensures proper positioning of the tools being calibrated.

Made In
Switzerland Flag
Categories: , , , , , , , , , , , , , , , Brand:

Features:

  • Delivered with 2 parallel 25mm TEL5 gauge block
  • Robust design, ideal for use in workshop
  • Extremely simple to use for presetting of vernier callipers, micrometres, inside and outside gauges as well as 2-point measuring instruments
  • Much faster to use over longer ranges with the proven manual displacement system as compared to the motorized displacement system
  • HS5 allows for very precise setting using it’s motorized fine displacement during the final stage of pre-setting of gauges
  • Works on battery or power supply
  • Measuring force is fixed at 15N

Technical Specifications:

HS5 500 1000 1500 2000 3000
Measuring range * mm (in) 550 (20) 1050 (40) 1550 (60) 2050 (80) 3050 (120)
Max. permissible errors, BMPE 1) μm 0.7 + L(mm)/1000 0.7 + L(mm)/1000 0.7 + L(mm)/1000 0.7 + L(mm)/1000 0.7 + L(mm)/1000
Repeatability, RMPE (2s)1) μm 0.5  0.5  0.5  0.5  0.5
Maximal Resolution mm (in) 0.0001 (0.00001)  0.0001 (0.00001)  0.0001 (0.00001)  0.0001 (0.00001)  0.0001 (0.00001)
Max.displacement speed mm/s 1500 1500 1500 1500 1500
Measuring force (0 setting) N 15 15 15 15 15
Interfaces RS232/USB RS232/USB RS232/USB RS232/USB RS232/USB
Operational temperature °C +10 ÷ +40  +10 ÷ +40  +10 ÷ +40  +10 ÷ +40  +10 ÷ +40
Weight kg 94 123 152 181 239

1) Values determined at a temperature of 20 ± 0.5 °C and a relative humidity of 50 ± 5 %.
* The measuring range depends on the anvils used

Technology

Tactile Measurements 1D/2D
Industry

Automotive & Auto Ancillary, Aerospace, Defense, Government & R&D, Pharma & Med-Tech, Heavy, Power generation, Electronic & Communication, Tooling
