Trimos Setting Bench – HS4

Trimos HS5

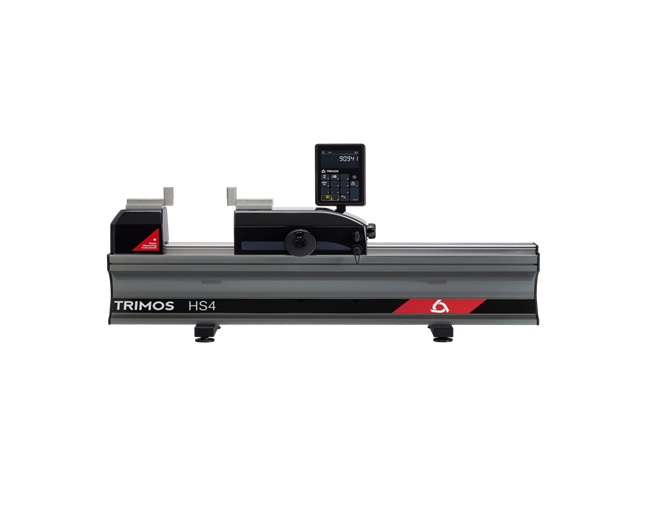

The Horizon Setting HS4 is a top-quality instrument used to check and calibrate measuring tools with both fixed and adjustable sizes. With its high accuracy and fine finish, it is perfect for use in both workshops and laboratories. It meets the latest needs in the manufacturing industry.

This new model is based on the trusted Trimos Horizon Premium but now comes with upgraded electronics and a modern display. Its user-friendly design and easy handling ensure accurate results and improved productivity.

Trimos offers this instrument in different sizes, from 500 mm to 3000 mm. All models allow direct measurement, so the full range can be used without any need for adjustment or re-calibration in between. A wide variety of interchangeable accessories are also available, making it easy to position and calibrate different tools properly.

Made In
Switzerland Flag
Categories: , , , , , , , , , , , , , , Brand:

Features:

  • Delivered with 2 parallel 25mm TEL5 gauge block
  • Robust design, ideal for use in workshop
  • Extremely simple to use for presetting of vernier callipers, micrometres, inside and outside gauges as well as 2-point measuring instruments
  • Much faster to use over longer ranges with the proven manual displacement system as compared to the motorized displacement system
  • Works on battery or power supply
  • Measuring force is fixed at 15N

Technical Specifications:

HS4 500 1000 1500 2000 3000
Measuring range * mm (in) 550 (20) 1050 (40) 1550 (60) 2050 (80) 3050 (120)
Max. permissible errors, BMPE 1) μm 0.7 + L(mm)/1000 0.7 + L(mm)/1000 0.7 + L(mm)/1000 0.7 + L(mm)/1000 0.7 + L(mm)/1000
Repeatability, RMPE (2s)1) μm 0.5 0.5 0.5 0.5 0.5
Maximal Resolution mm (in) 0.0001 (0.00001) 0.0001 (0.00001) 0.0001 (0.00001) 0.0001 (0.00001) 0.0001 (0.00001)
Max.displacement speed mm/s 1500 1500 1500 1500 1500
Measuring force (0 setting) N 15 15 15 15 15
Interfaces RS232/USB RS232/USB RS232/USB RS232/USB RS232/USB
Operational temperature °C +10 ÷ +40 +10 ÷ +40 +10 ÷ +40 +10 ÷ +40 +10 ÷ +40
Weight kg 94 123 152 181 239

1) Values determined at a temperature of 20 ± 0.5 °C and a relative humidity of 50 ± 5 %.
* The measuring range depends on the anvils used

Technology

Tactile Measurements 1D/2D
Industry

Automotive & Auto Ancillary, Aerospace, Defense, Government & R&D, Pharma & Med-Tech, Heavy, Power generation, Electronic & Communication, Tooling
