With automatic edge detection using a high-resolution camera and application-specific magnification selection, the system delivers highly accurate measurements, with errors reduced to a few hundred nanometers. The modular design allows customization for various measuring tasks, and the compact build ensures space-saving installation. The WinWerth® software provides seamless measurement evaluation with CAD support, graphical analysis, and automatic measurement options.
Key Features:
High-Precision Optics:
Uses low-distortion telecentric lenses for clear, accurate imaging across various field sizes—from very small (0.8 x 0.6 mm) to large (225 x 190 mm).
Flexible Zoom Options:
Comes with a 10x optoelectronic zoom plus electronic zoom to achieve almost any desired magnification.
Advanced Lighting:
Supports 8-segment darkfield incident lighting and Werth FlatLight for better visibility of features and edges.
Easy Focusing at High Magnification:
The software includes a helpful focus function, especially useful when working with high magnification.
Visual Quality Check:
Enables functional inspection and shows results using colour-coded deviation plots with Werth BestFit or ToleranceFit®.
Standards-Based Accuracy:
Measurement accuracy is compliant with DIN 10360 or VDI 2617 standards, ensuring results are comparable to traditional coordinate metrology.
Upgrade Option Available:

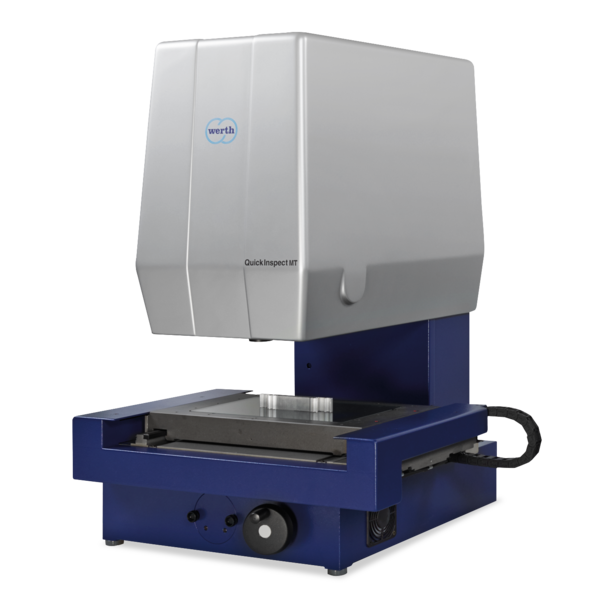

Can be easily upgraded to a QuickInspect MT with larger measuring ranges of 250 x 125 mm or 400 x 200 mm
