These machines feature temperature-compensated drives and optimal heat circulation, ensuring high-temperature stability for axes and sensors. The highly accurate incremental measuring system, with 1 nm resolution, and temperature compensation with a workpiece sensor, offer exceptional precision. The modular design allows for easy adaptation to specific measuring tasks. With a wide range of sensors, including Werth contour image processing, Werth Zoom, the system provides highly precise measurement capabilities, including for ultra-precise workpieces with submicron tolerances and 3D microgeometries on large workpieces.
Key Features:

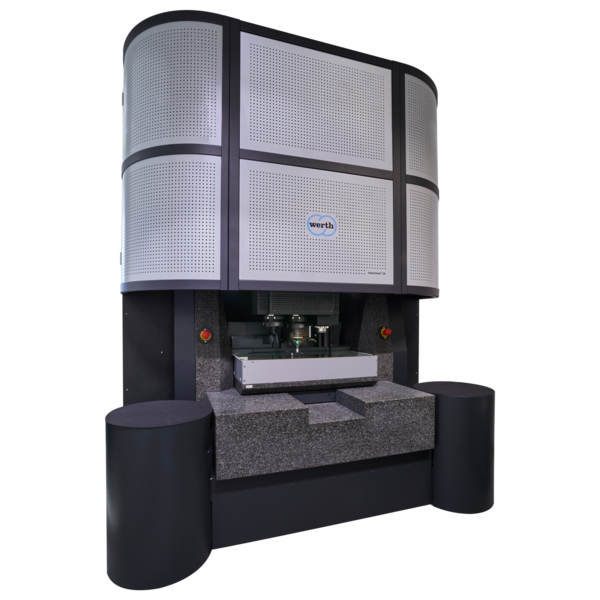

Ultra-stable granite design:
Solid granite body with a fixed bridge ensures top-level accuracy and stability.
Large measuring area:
Offers a unique measuring volume of 400 x 400 x 250 mm in its class.

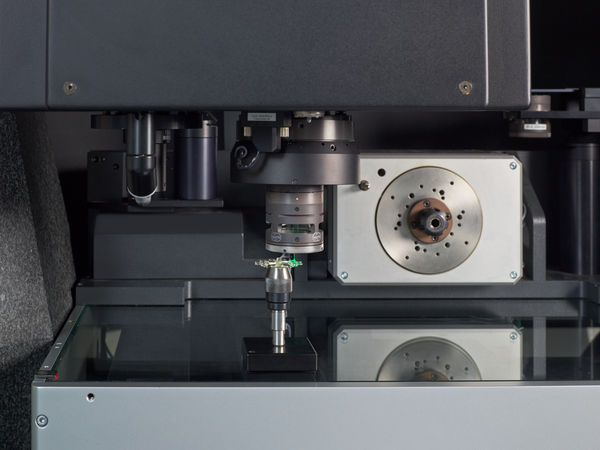

High-precision optics:
Uses telecentric lenses and advanced contour image processing for extremely accurate optical measurements.
Multisensor capability:
Can integrate ultra-precise sensors like the Werth Fiber Probe® and Chromatic Focus Point sensor for versatile applications.
Accurate height measurement:
Delivers highly precise Z-axis (height) measurements with fast contrast autofocus.
