Trimos Calibration Bench – THV

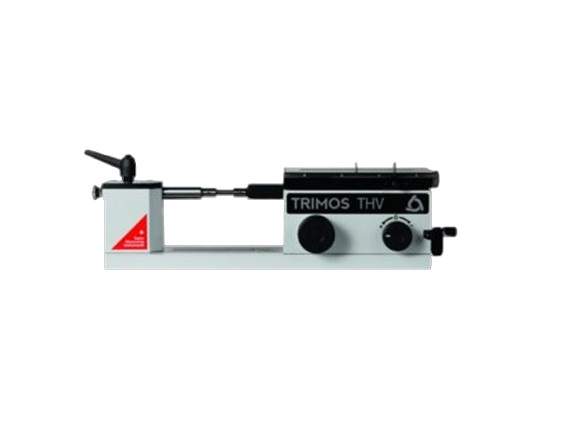

The Trimos Horizontal THV instrument is specially made to calibrate and certify small-sized gauging tools.

It helps in checking plug gauges, ring gauges, thread plug gauges, test indicators, dial indicators and also in measuring high-precision parts easily and accurately.

It comes with an advanced opto-electronic measuring system that gives very accurate results. You can see the measurement results either on a separate display unit or on a computer using Trimos WinDHI software.

THV is also available without the measuring system. In that case, you can use an electronic probe or a dial indicator as the measuring system.

Because of its compact size, the THV is easy to carry and move. That is why many people use it as a mobile calibration station.

Made In
Switzerland Flag
Categories: , , , , , , , , , , , , , , Brand:

Key Features:

  • Ideal for the workshop or measuring room
  • The instrument meets ISO 9000 requirements
  • Ease of use
  • Large range of accessories
  • Checking of internal and external dimensions
  • Special tilting table can be provided for easy measurement / calibration of threads
  • Ideal for calibration of gauges under 100mm

Technical Specifications:

THV
Absolute measuring range* mm(in) 50 (2)
Application range (external measurements)* mm(in) 100 (4)
Application range (internal measurements)* mm(in) 100 (4)
Max. permissible errors¹) μm 0.2 + L(mm)/250
Repeatability, RMPE (2s)¹) μm 0.1
Resolutions (depending on display unit) mm (in) 0.1 ÷ 0.00001 (.0001 ÷ .0000001)
Measuring force (adjustable) N 0 ÷ 4
Operational temperature °C +10 ÷ +40
Temperature of storage °C -10 ÷ +40
Weight Kg 22

* The measuring range depends on the anvils used

1) Values determined at a temperature of 20 ± 0.5 °C and a relative humidity of 50 ± 5 %.
